Containerize MongoDB and Mongo Express using Docker Containers

We can containerize our applications using Docker to have a separate installation of the required packages with the application-specific versions independent of the underlying operating system. We can use Docker Containers to make our application portable so that we can simply move it to another system having docker. This tutorial provides all the steps to containerize MySQL and phpMyAdmin using Docker containers.

Prerequisites

Windows -  How To Install WSL 2 (Windows Subsystem for Linux) with Ubuntu On Windows 10 and How To Install Docker Desktop On Windows 10. Optionally you may follow How To Change Docker Data Path On Windows 10.

Ubuntu - How To Install Docker Engine on Ubuntu 20.04 LTS

macOS - How To Install Docker Desktop On Mac

Install MongoDB and MongoDB Express

In this step, we will configure and install MongoDB and Mongo Express using the official images. Create the docker-compose.yml at the root of your project directory as shown below.

# docker-compose.yml
version: "3.8"
services:
  mongo:
    image: mongo:5.0
    container_name: mongo
    environment:
        - MONGO_INITDB_ROOT_USERNAME=root
        - MONGO_INITDB_ROOT_PASSWORD=password
    restart: unless-stopped
    ports:
      - "27017:27017"
    volumes:
      - ./database/db:/data/db
      - ./database/dev.archive:/Databases/dev.archive
      - ./database/production:/Databases/production
  mongo-express:
    image: mongo-express
    container_name: mexpress
    environment:
      - ME_CONFIG_MONGODB_ADMINUSERNAME=root
      - ME_CONFIG_MONGODB_ADMINPASSWORD=password
      - ME_CONFIG_MONGODB_URL=mongodb://root:password@mongo:27017/?authSource=admin
      - ME_CONFIG_BASICAUTH_USERNAME=mexpress
      - ME_CONFIG_BASICAUTH_PASSWORD=mexpress
    links:
      - mongo
    restart: unless-stopped
    ports:
      - "8081:8081"

Replace the root password while configuring the docker-compose.yml.

Now, run the command docker-compose build to build the application.

# Build
cd <path to project>/helloworld
docker-compose build

# Output
mongo uses an image, skipping
mongo-express uses an image, skipping

We also need to run the command docker-compose up to launch the application as shown below. It will pull the MongoDB and Mongo Express images and take time for the first time. The subsequent launches will be faster.

# Up
cd <path to project>/helloworld
docker-compose up

# Output
Creating network "helloworld_default" with the default driver
Pulling mongo (mongo:5.0)...
5.0: Pulling from library/mongo
7b1a6ab2e44d: Pull complete
90eb44ebc60b: Pull complete
5085b59f2efb: Pull complete
....
....
dd1b5b345323: Pull complete
Digest: sha256:187c20c000cc48184a8af0bc451fa1b4b4c4949d41cf8b2737327d584da323ae
Status: Downloaded newer image for mongo:5.0
Pulling mongo-express (mongo-express:)...
latest: Pulling from library/mongo-express
6a428f9f83b0: Pull complete
f2b1fb32259e: Pull complete
....
....
e60224d64a04: Pull complete
Digest: sha256:2a25aafdf23296823b06bc9a0a2af2656971262041b8dbf11b40444804fdc104
Status: Downloaded newer image for mongo-express:latest
Creating mongo ... done
Creating mexpress ... done
Attaching to mongo, mexpress

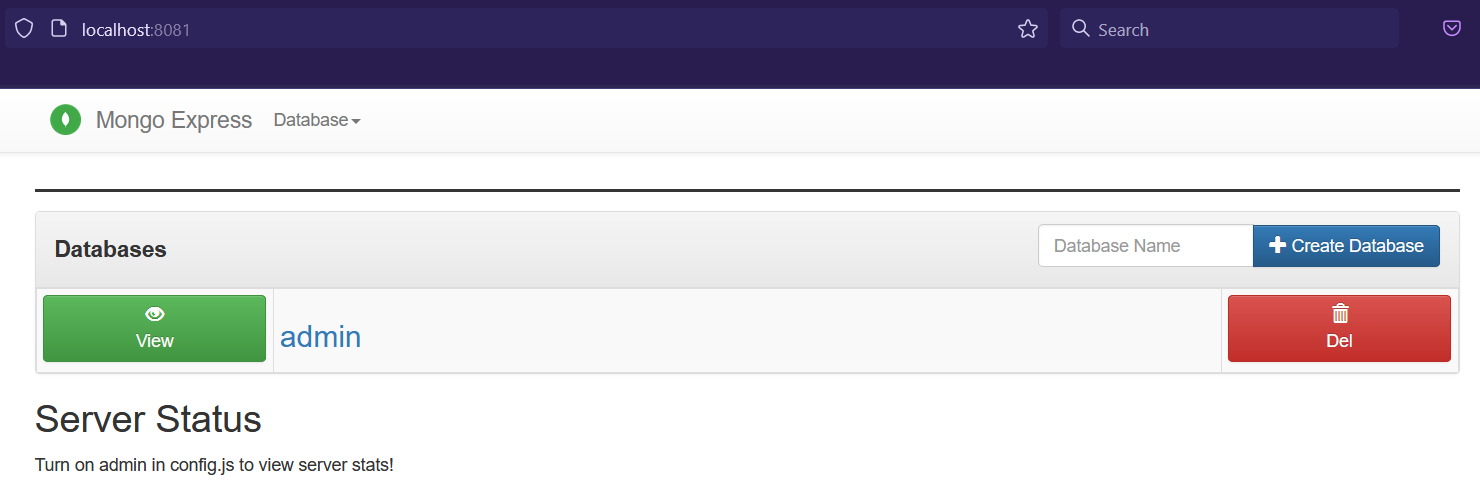

We can access MongoDB using the URL - http://localhost:8081. It will ask for the basic authentication configured by us. The home page should be similar as shown below.

Fig 1

This completes the installation and configuration of MongoDB and Mongo Express. We can also use Compass and Robo 3T installed locally using port 27017 to access the MongoDB database running in the Docker container.

Summary

This tutorial provided all the steps to containerize MongoDB and Mongo Express using Docker containers.
