Containerize MySQL and phpMyAdmin using Docker Containers

Containerize MySQL and phpMyAdmin using Docker Containers

This tutorial provides all the steps required to containerize MySQL and phpMyAdmin using Docker Containers.

December 13, 2021

We can containerize our applications using Docker to have a separate installation of the required packages with the application-specific versions independent of the underlying operating system. We can use Docker Containers to make our application portable so that we can simply move it to another system having docker. This tutorial provides all the steps to containerize MySQL and phpMyAdmin using Docker containers.

Prerequisites

WindowsHow To Install WSL 2 (Windows Subsystem for Linux) with Ubuntu On Windows 10 and How To Install Docker Desktop On Windows 10. Optionally you may follow How To Change Docker Data Path On Windows 10.

Ubuntu - How To Install Docker Engine on Ubuntu 20.04 LTS

macOS - How To Install Docker Desktop On Mac

Install MySQL and phpMyAdmin

In this step, we will configure and install MySQL and phpMyAdmin using the official images. Create the docker-compose.yml at the root of your project directory as shown below.

# docker-compose.yml
version: "3.8"
services:
mysql:
image: mysql:8.0.27
container_name: mysql
environment:
MYSQL_ROOT_PASSWORD: '<root-password>'
MYSQL_DATABASE: helloworld
MYSQL_USER: helloworld
MYSQL_PASSWORD: '<db-password>'
ports:
- "3306:3306"
volumes:
- ./database:/var/lib/mysql
phpmyadmin:
image: phpmyadmin/phpmyadmin
container_name: pma
links:
- mysql
environment:
PMA_HOST: mysql
PMA_PORT: 3306
PMA_ARBITRARY: 1
restart: always
ports:
- 8085:80

Now, run the command docker-compose build to build the application.

# Build
cd <path to project>/helloworld
docker-compose build

# Output
mysql uses an image, skipping
phpmyadmin uses an image, skipping

We also need to run the command docker-compose up to launch the application as shown below. It will pull the MySQL and phpMyAdmin images and take time for the first time. The subsequent launches will be faster.

# Launch Application
docker-compose up

# Output
Pulling mysql (mysql:8.0.27)...
8.0.27: Pulling from library/mysql
ffbb094f4f9e: Pull complete
df186527fc46: Pull complete
fa362a6aa7bd: Pull complete
5af7cb1a200e: Pull complete
....
....
Status: Downloaded newer image for mysql:8.0.27
Pulling phpmyadmin (phpmyadmin/phpmyadmin:)...
latest: Pulling from phpmyadmin/phpmyadmin
69692152171a: Pull complete
2040822db325: Pull complete
....
....
2e982de2b8e5: Pull complete
Digest: sha256:382dedf6b43bf3b6c6c90f355b4dda660beb3e011de91bb3241170e54fca6119
Status: Downloaded newer image for phpmyadmin/phpmyadmin:latest
Creating mysql ... done
Creating pma ... done
Attaching to mysql, pma
....
....

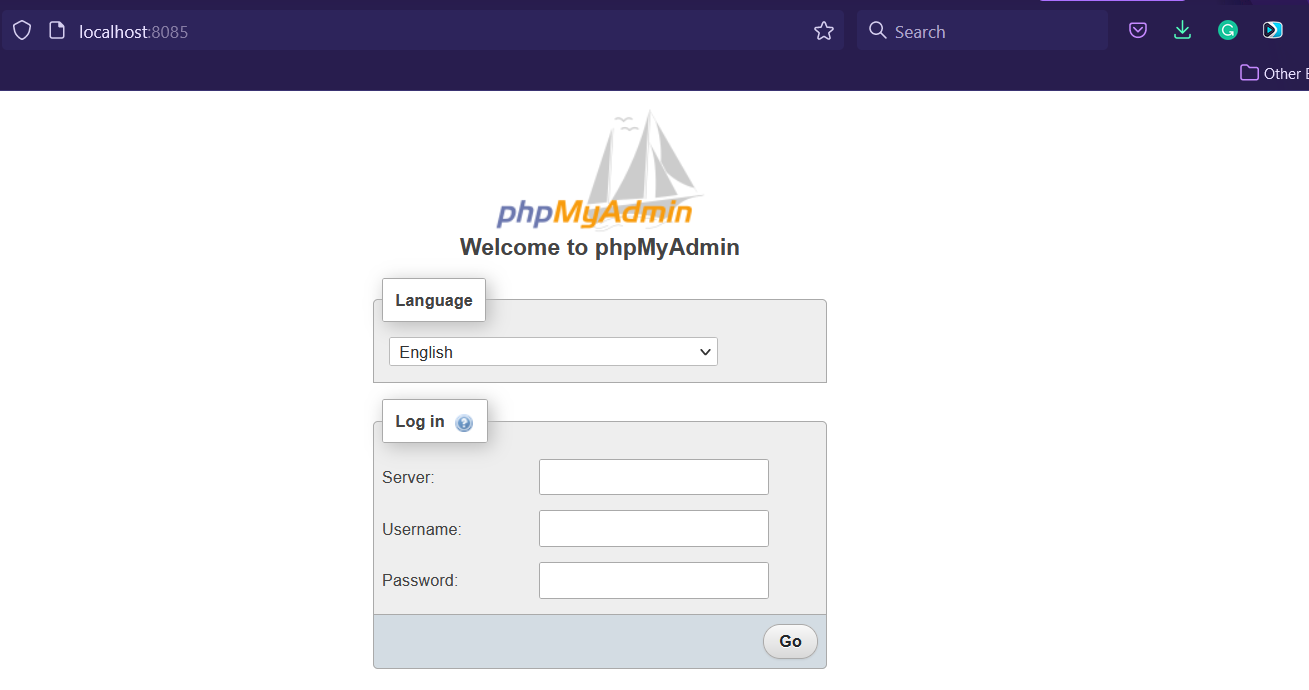

Now, try to access phpMyAdmin from the Browser using the URL http://localhost:8085. It should show the phpMyAdmin home page as shown in Fig 1.

Containerize MySQL and phpMyAdmin using Docker - phpMyAdmin

Fig 1

Now, login to phpMyAdmin using the username as root and the root password configured in the docker-compose.yml. Also, leave the server blank. It should show the phpMyAdmin home page as shown in Fig 2.

Containerize MySQL and phpMyAdmin using Docker - phpMyAdmin

Fig 2

We can press Ctrl + C to stop the containers.

# Press Ctrl + C
Gracefully stopping... (press Ctrl+C again to force)
Stopping pma ... done
Stopping mysql ... done

We can also use MySQL Workbench installed locally using port 3306 to access the MySQL database running in the Docker container.

Summary

This tutorial provided all the steps to containerize MySQL and phpMyAdmin using Docker containers.
